The VICTRIX TERA V2 ErP wall-mounted condensing gas boiler offers all the advantages of condensing with SUPER COMPACT dimensions. Having technology compatible with the new European directives and aiming to reduce energy consumption, it is the most effective solution for many new installations and replacements of existing systems.

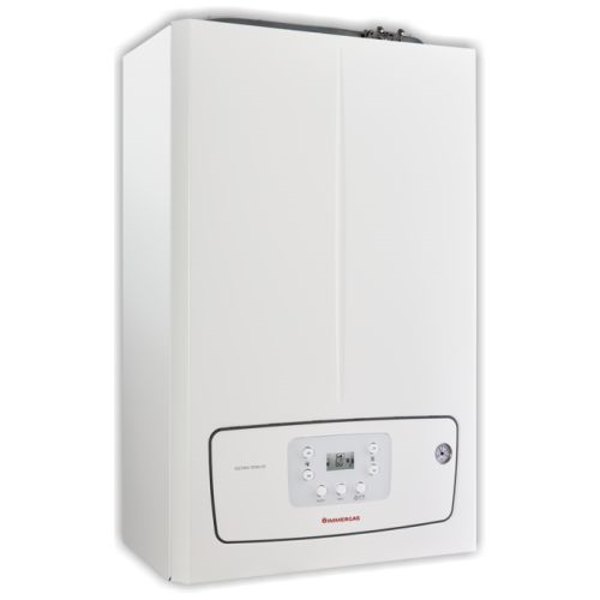

Victrix Tera 38 V2 Immergas Condensate Natural Gas Boiler.
Hydrogen Ready, able to burn with mixtures of up to 20% hydrogen
Very high efficiency condensing unit with stainless steel single coil – seasonal efficiency ηs 94%
New low consumption inverter circulator
Boiler power management range from 18 to 100%
Environmentally friendly - low emissions (Class 6)
Adjustable by-pass
Temperature sensors at the inlet-outlet of the heat exchanger for better adaptation of the pump according to the instantaneous Δt
Possibility of installation in a partially covered area IPX5D
Antifreeze protection at -5; expandable to -15; with the optional kit
Possibility of remote management of the boiler of the boiler (DOMINUS app and Smartech control wi-fi)
Drain siphon for the safety valve
Sparkizer and Ionizer in one component (2 in 1)
Boiler power consumption in stand-by less than 6 watts
New modern design
White RAL 9010 50 Glossy pre-painted metal housing, with hollow flame.
White cosmetic cover, surrounded by a gray border.
Glossy user interface, in white PMMA (glass effect) and white rubber keys. Silver gray symbols.
DOMINUS
Boiler management application via internet
The VICTRIX TERA V2 boiler can be controlled remotely from a tablet, smartphone and laptop via the new DOMINUS app (for android, ios & windows).
ECOLOGICAL
The reduced emissions of carbon monoxide (CO) and nitrogen oxides (NOx) have classified the VICTRIX TERA V2 boiler in the highest category 6 (Class 6), the most ecological according to the European standards UNI EN 297 and UNI EN 15502.
The low consumption GRUNDFOS circulator (Class A) has significant energy savings compared to the traditional circulator and self-regulates according to fluctuations.
SINGLE COIL ALTERNATOR
The combustion chamber consists of a one-piece stainless steel element, which ensures durability and high reliability in the formation of condensate from the cooling of combustion products.
VALVE KIT FOR POSITIVE PRESSURE CHIMNEY CONNECTION TYPE C10-C12
The EN 15502 standard requires 2 safety devices to prevent the return of flue gases in case of connection to common chimney systems operating at positive pressure.
The VICTRIX TERA V2 has a software function via exhaust gas sensor check to verify proper sealing of the clapet valve (CODE 3.032877 NEW) in order to avoid exhaust gas inversion problems.
Specifications
Thermal Power (Kw): 32.8
Power Kw ZNX: 38.3
Efficiency 80-60?C: 97.7%
Efficiency 40-30?C: 108.5%
Hot water production ΔT30oC: 18.6 lit/min
Expansion tank: 10 lit.
Electrical protection: IPX5D
Dimensions HxWxD (mm): 748 x 440 x 253
Weight (empty): 36.8 kgr
Ability to communicate via wifi with the Dominus app
